Issue

When adding a Runtime or a Log Database in Analytics, the following error occurs: Cannot connect to the data source.

Cause

The error may occur due to the JDBC driver for the Runtime log database not being properly set in the <XDI_ANALYTICS_WEBAPP_HOME>/jdbc directory.

Solution

1. Ensure that the JDBC drivers for the Runtime log database are installed in the <XDI_ANALYTICS_WEBAPP_HOME>/jdbc directory:
   [~/xdi_analytics_webapp_home/]# ls -l
   internal
   jdbc
   navigator
   repositories
   logs
   temp
   users
   Note: The XDI_ANALYTICS_WEBAPP_HOME location depends on your Application Server installation and can be controlled with the XDI_ANALYTICS_WEBAPP_HOME  environment variable. This location is different from the webapp installation directory inside your application server (which contains META-INF and WEB-INF folders).

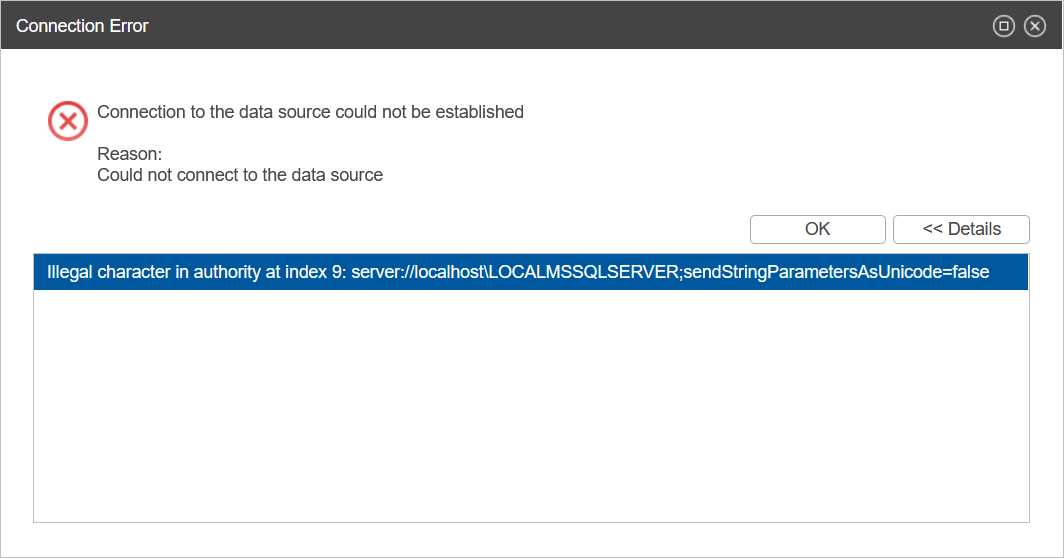

2. Check the engineParameters.xml file for the userLogRdbmsUrl parameter. An "Illegal character in authority" error may occur if there is a backslash in the URL.
   For example:
   <parameter name="userLogRdbmsUrl" value="jdbc:sqlserver://localhost\LOCALMSSQLSERVER;sendStringParametersAsUnicode=false"/>

3. This issue arises due to backslashes in the URLs.

4. Modify the connection URL in the engineParameters.xml file to specify the instance correctly. For example:
   jdbc:sqlserver://localhost;instance=LOCALMSSQLSERVER

   instead of:

   jdbc:sqlserver://localhost\LOCALMSSQLSERVER
