Product: Semarchy Native App (xDM)

Version: 2025.1.12 or later

Author: Clément Darras, Matthieu Sanogho, Hélène Zosym

Need

Snowflake Managed PostgreSQL is now officially certified as a supported data location and repository backend for the Semarchy Native App. This opens the possibility for existing customers — typically those currently running the Native App with an embedded PostgreSQL repository and Hybrid Tables as a data location — to migrate to Snowflake Managed PostgreSQL.

Depending on the customer's requirements, the migration can cover:

1. The repository only — data locations stay on Hybrid Tables.
2. The repository and the data locations — both move to Managed PostgreSQL.

This article describes the recommended end-to-end migration process — covering data model migration, data migration, and repository migration — along with the prerequisites, risks, and operational considerations for each step. It is intended for Semarchy Support and Professional Services teams accompanying customers through this process.

Summarized Solution

• Decide the migration scope: repository only, or repository and data locations.
• If data locations change, rebuild the data model: export the XML, remove Hybrid Tables/Cortex AI-specific objects, and redeploy on the new Managed PostgreSQL data location.
• If data locations change, migrate the data out of Hybrid Tables into Managed PostgreSQL using Snowflake's native data-movement capabilities.
• Migrate the repository in four steps: back up the embedded repository, export it to pg_dump format, restore it into Managed PostgreSQL, then switch the Native App to the external repository.
• Expect application downtime during the final configuration switch — plan the migration outside production hours.
• Validate data integrity and full application behavior before retiring the embedded repository backups.

Detailed Solution

1. Migration Options

Confirm which option applies before starting, since it determines whether steps 2 and 3 below are needed.

2. Data Model Migration

If the data location does not change (Option 1), the data model migrates automatically together with the repository — no further action is required.

If the data location does change (Option 2), the data model must be adjusted:

1. Export the XML from the existing Native App UI.
2. Store it locally or in version control for backup purposes.
3. Remove any DB functions specific to Hybrid Tables and any SQL usage of Cortex AI.
4. Save the adapted version as XML.
5. Prepare the target Managed PostgreSQL data location.

create user <data_location_user> with password '<data_location_password>';
grant <data_location_user> to snowflake_admin;
create schema <data_location_user> authorization <data_location_user>;

       6. Deploy the new version of the model to this data location.

At the end of this step, the data location and data model are switched to Managed PostgreSQL.

3. Data Migration

If the data location changes, move the data from Hybrid Tables (standard Snowflake tables) into the Managed PostgreSQL instance using pg_lake, the Postgres extension that Snowflake provides for data movement between Snowflake Postgres and Snowflake. This is documented officially in Moving data between Snowflake Postgres and Snowflake.

Snowflake documents three data-movement patterns; only two support writing data from Snowflake into Postgres (the direction needed for this migration):

Recommended procedure using Stages (see Set up a Postgres stage and Move data between Snowflake and Postgres for full reference):

1. Confirm the target Postgres instance uses a STANDARD or HIGH MEMORY tier — data movement with pg_lake is not supported on BURSTABLE instances.

2. In Snowflake, create a storage integration pointing at the Postgres instance:

CREATE STORAGE INTEGRATION my_pg_stage_integration
     TYPE = POSTGRES_INTERNAL_STORAGE
     POSTGRES_INSTANCE = 'my_postgres_instance';

3. Create a Snowflake stage backed by that integration

CREATE STAGE my_pg_stage
     RELATIVE_URL = '/my_data'
     STORAGE_INTEGRATION = my_pg_stage_integration

4. On the Postgres instance, enable the pg_lake extension

CREATE EXTENSION pg_lake CASCADE;

5. In Snowflake, unload each Hybrid Table to an existing source stage (e.g. as Parquet):

 COPY INTO @<source_stage>
     FROM <hybrid_table>
     FILE_FORMAT = (TYPE = PARQUET);

6. Move the unloaded files from the source stage into the Postgres-backed stage:

COPY FILES
     INTO @my_pg_stage
     FROM @<source_stage>;

7. On the Postgres side, load the files into the target table:

 COPY <table> FROM '@STAGE/my_data/data*.parquet';

Further reading:

• Moving data between Snowflake Postgres and Snowflake (official documentation — patterns, setup, and access control)
• Hybrid tables overview (source table type being migrated from)
• Sync Data from Snowflake Postgres to Snowflake with Iceberg and pg_lake (developer walkthrough)
• Bidirectional Data Movement between SPG and SF with pg_lake — Internal Stage (end-to-end quickstart using internal stages, the pattern used above)
• CREATE STORAGE INTEGRATION (Postgres Internal Storage) (SQL reference)

4. Repository Migration

The repository migration follows four steps, regardless of which option was chosen.

Overview — 4 steps

• Step 1 — Backup the embedded repository
• Step 2 — Export to pg_dump format
• Step 3 — Restore into Managed PostgreSQL
• Step 4 — Reconfigure the Native App

Step 1 — Backup the embedded repository

Create a snapshot of the embedded repository using the backup procedure provided by the Native App. This snapshot is the reference save point before any operation

CALL <native_app_name>.XDM_PUBLIC.xdm_repo_backup(<snapshot_name>);

Step 2 — Export to pg_dump format

Once the snapshot is created, use the xdm_repo_dump procedure to generate a PostgreSQL dump in custom format. This procedure mounts the snapshot in a temporary SPCS container and runs pg_dump on the semarchy_repository schema. It is the first step to migrate from the embedded repository to an external one.

CALL <native_app_name>.XDM_PUBLIC.xdm_repo_dump(<snapshot_name>);

• <snapshot_name> (mandatory): the name of an existing snapshot previously created with xdm_repo_backup. The dump mounts this snapshot read-only, starts a temporary PostgreSQL instance, and dumps it — the live repository is never impacted.

The procedure:

• runs only in embedded repository mode (returns an informational message otherwise);
• dumps only the semarchy_repository schema (the extensions schema and the database search_path must be manually recreated at restore time — see below);
• writes <snapshot_name>.pgdump (lower-cased) to the @XDM_APP_SCHEMA.REPO_DUMPS stage and refreshes the stage directory.
• In external repository mode, xdm_repo_dump returns an informational message and has no effect.

Download the dump locally with the Snowflake CLI (or Snowsight).

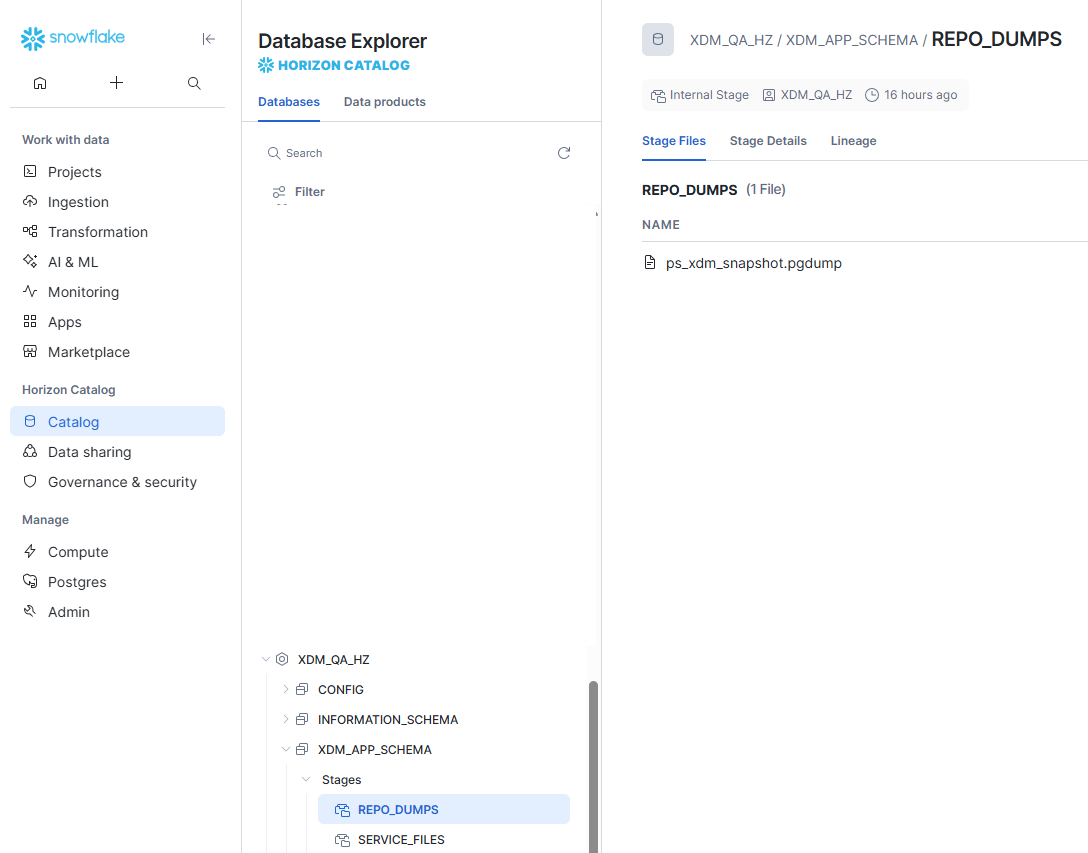

A. Snowsight UI:

• Go to Catalog - Databases Explorer
• Locate the NativeApp database (named the same as your app)
• Go to XDM_APP_SCHEMA - Stages - REPO_DUMPS

B. Snowflake CLI

• Open your command line tool on a machine where Snowflake CLI is installed and configured
• Run snow sql command to open interactive SQL command line
• Run the following command to get dump

USE DATABASE <native_app_name>;
GET @XDM_APP_SCHEMA.REPO_DUMPS/<snapshot_name>.pgdump file:///local/path/;

Step 3 — Prepare an external PostgreSQL and restore the dump

Restore the dump into the target Snowflake Managed PostgreSQL instance using standard PostgreSQL tools. These operations are performed outside Snowflake, against the target PostgreSQL instance, using a privileged administrator account (for example snowflake_admin on a Snowflake-managed PostgreSQL, where the built-in postgres superuser is not available).

Make sure that the network rules allows connection from your DBM tool to the given PostgreSQL instance. See Step 1. Prepare Network Rules in this article for more details.

3.1 — Manual prerequisites (run once, as the administrator)

The logical dump only contains the semarchy_repository schema. The repository role, the extensions schema, and the database search_path must all be created manually before restoring.

Apply the instructions regarding repository configuration described in  Step 4. Create and configure databases for Semarchy NativeApp of this article.

3.2 — Restore the dump

Restore the semarchy_repository schema with pg_restore, forcing object ownership to the <repository_username> role via --no-owner --role. The administrator (snowflake_admin) was already made a member of that role in the prerequisites above, and the target schema already exists and is owned by <repository_username>, so no extra database-level grant is required:

pg_restore --no-owner --no-privileges \
    --role=<repository_username> --schema=semarchy_repository \
    -h <host> -p <port> -U snowflake_admin -d <database> \
    <snapshot_name>.pgdump

Step 4 — Switch from embedded to external repository

Once the restoration has been validated in Managed PostgreSQL, reconfigure the Native App to use the external repository via the switch_to_external_repo procedure

CALL <native_app_name>.XDM_PUBLIC.switch_to_external_repo(
    <repository_url>,
    [<repository_username>,]
    [<repository_password>,]
    [<repository_ro_username>,]
    [<repository_ro_password>]
);

Procedure behavior:

• Before switching, the procedure automatically creates a safety snapshot of the embedded repository (via xdm_repo_backup).
• It verifies that the snapshot is in CREATED state before proceeding.
• It drops the embedded service and recreates it from the external repository spec — switching repository mode changes the volume layout, which Snowflake does not allow via ALTER SERVICE, so the service must be recreated.
• On failure, an automatic rollback is triggered: the embedded service is recreated and the block volume is restored from the safety snapshot.
• On success, the safety snapshot is automatically deleted.

switch_to_external_repo only runs from embedded mode; in external mode it returns an informational message.

Typical end-to-end repository migration (summary)

-- 1. Dump the embedded repository and download it
CALL XDM_APP.XDM_PUBLIC.xdm_repo_backup('migration_snapshot');
-- 2. Reuse the snapshot created by the xdm_repo_backup to dump it
CALL XDM_APP.XDM_PUBLIC.xdm_repo_dump('migration_snapshot');
-- 3. Download dump locally
GET @XDM_APP_SCHEMA.REPO_DUMPS/migration_snapshot.pgdump file:///tmp/;

-- 4. Prepare the external PostgreSQL and restore
--    pg_restore --no-owner --role=semarchy_repository --schema=semarchy_repository \
--               -h myhost -p 5432 -U snowflake_admin -d postgres /tmp/migration_snapshot.pgdump

-- 5. Switch the native app to the external repository
CALL XDM_APP.XDM_PUBLIC.switch_to_external_repo(
    'jdbc:postgresql://myhost:5432/postgres',
    'semarchy_repository',
    'semarchy_repository',
    'semarchy_repository_ro',
    'semarchy_repository_ro'
);

5. Known Limitations and Considerations

Current technical limitations

• PostgreSQL extensions and search_path are not included in the dump — they must be configured manually on the target instance.
• PostgreSQL version compatibility between the embedded container and Managed PostgreSQL must be verified before any migration.
• The xdm_repo_dump procedure has no effect if the Native App is already in external repository mode.
• If data locations change (Option 2), the pg_lake-based data migration is a Preview Feature available only on AWS and Microsoft Azure, and requires a STANDARD or HIGH MEMORY Postgres instance tier (not BURSTABLE).

Expected downtime

• The switch_to_external_repo step involves stopping the embedded PostgreSQL service — application downtime is expected.
• Duration depends on the startup time of the new external connection service — typically short, but should be validated under real conditions.
• Plan the migration outside of production hours.

6. Migration Checklist

Best Practices Summary

• ✅ Confirm the migration scope with the customer before starting (repository only vs. repository + data locations).
• ✅ Back up the embedded repository before any operation.
• ✅ Validate PostgreSQL version compatibility between source and target before restoring.
• ✅ Plan the switch_to_external_repo step outside production hours — it causes application downtime.
• ✅ Retrieve and update the new Native App URL after the switch.
• ✅ Retain the embedded backups until the migration is fully validated.
• ❌ Never call switch_to_external_repo before the dump has been fully restored and validated on the target instance.
• ❌ Never assume extensions or search_path are migrated automatically — they must be configured manually.

Following this process ensures a controlled, low-risk migration from the embedded PostgreSQL repository to Snowflake Managed PostgreSQL, with a clear rollback path at every step.
