Author: Derek Leung

Product version: 2024.X (tested on 2024.2)


Need

We came across the requirement to configure Data Notification to Confluent Cloud (Kafka).  Here are step-by-step configuration with screenshots.


Summarized Solution

Data Notification from xDM to Confluent Cloud can be configured using Application Designer and Confluent Cloud Cluster administration UI.


Detailed Solution


Prerequisites

  1. Confluent Cloud Cluster
  2. Semarchy xDM 2024.X (2024.2 in my screenshots)


Step-by-step guide


1. You need the following information from your Confluent Cloud Cluster set-up:

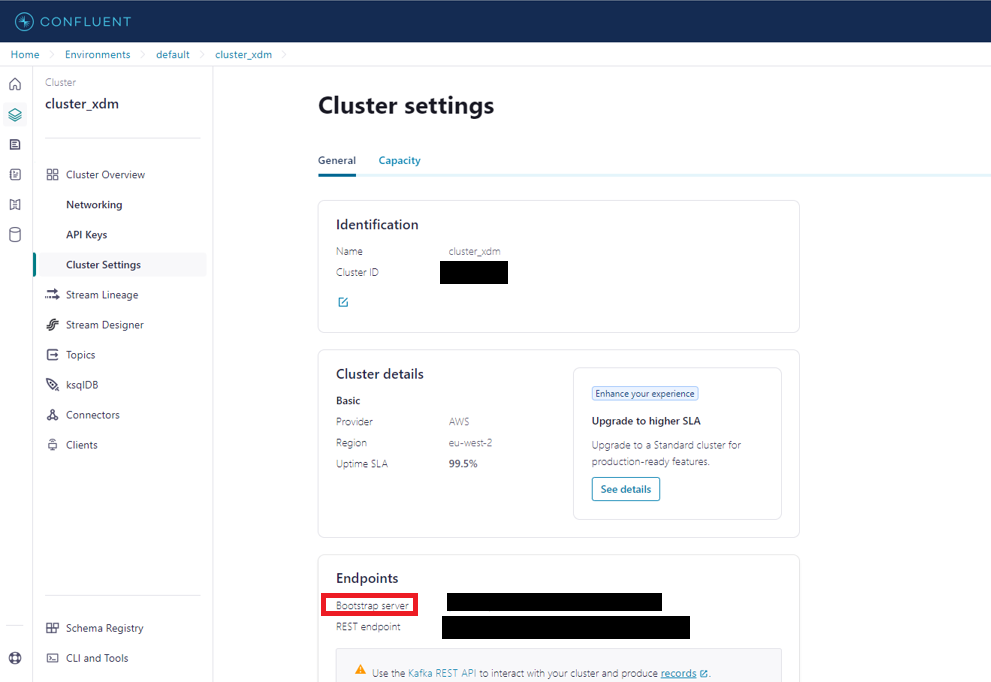

  • Bootstrap server

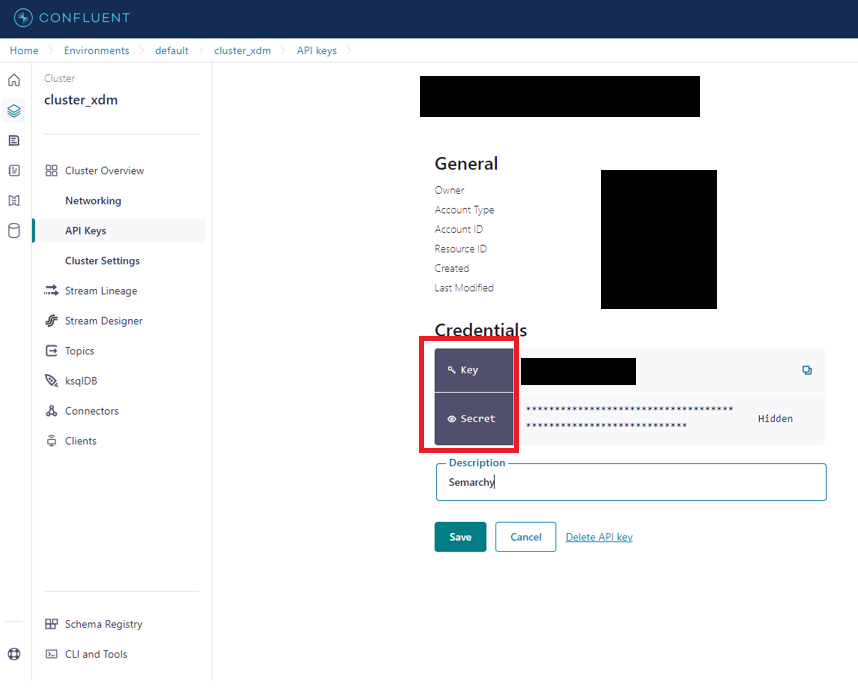

  • API Key
  • API Secret
  • Your topic name (It's called "Semarchy" in my step)

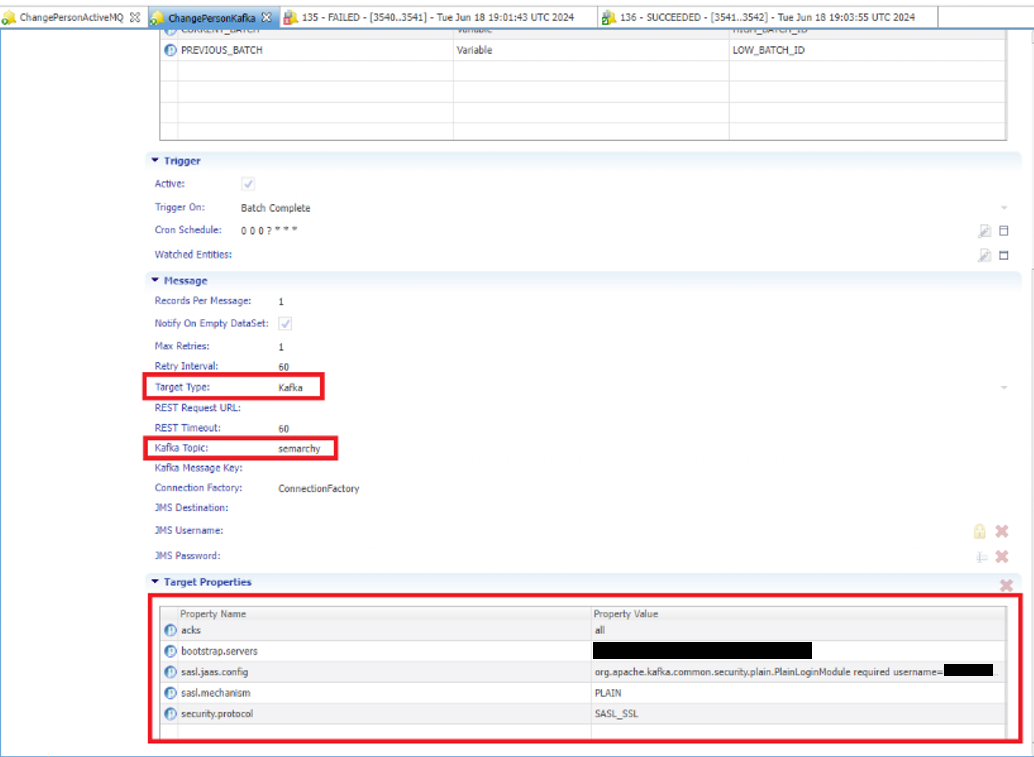

2. Configure Data Notification with the followings settings:


Target Type : Kafka

Kafka Topic : semarchy

Target Properties Name:


acks : all


bootstrap.servers : {Confluent Cloud - Bootstrap Server}


sasl.jaas.config : org.apache.kafka.common.security.plain.PlainLoginModule required username='{Confluent Cloud - API Key}' password='{Confluent Cloud - API Secret}';
sasl.mechanism : PLAIN

security.protocol : SASL_SSL



Reference : https://docs.confluent.io/cloud/current/client-apps/examples/kafka-connect-datagen.html

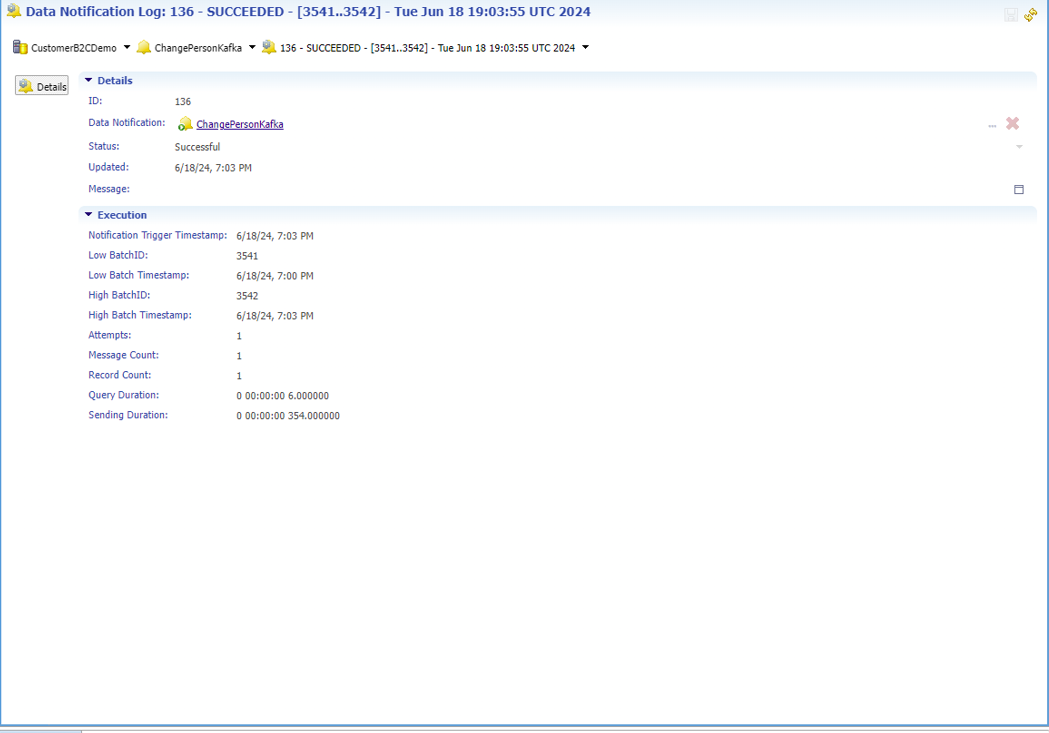

3. Test Data Notification, if it is successful

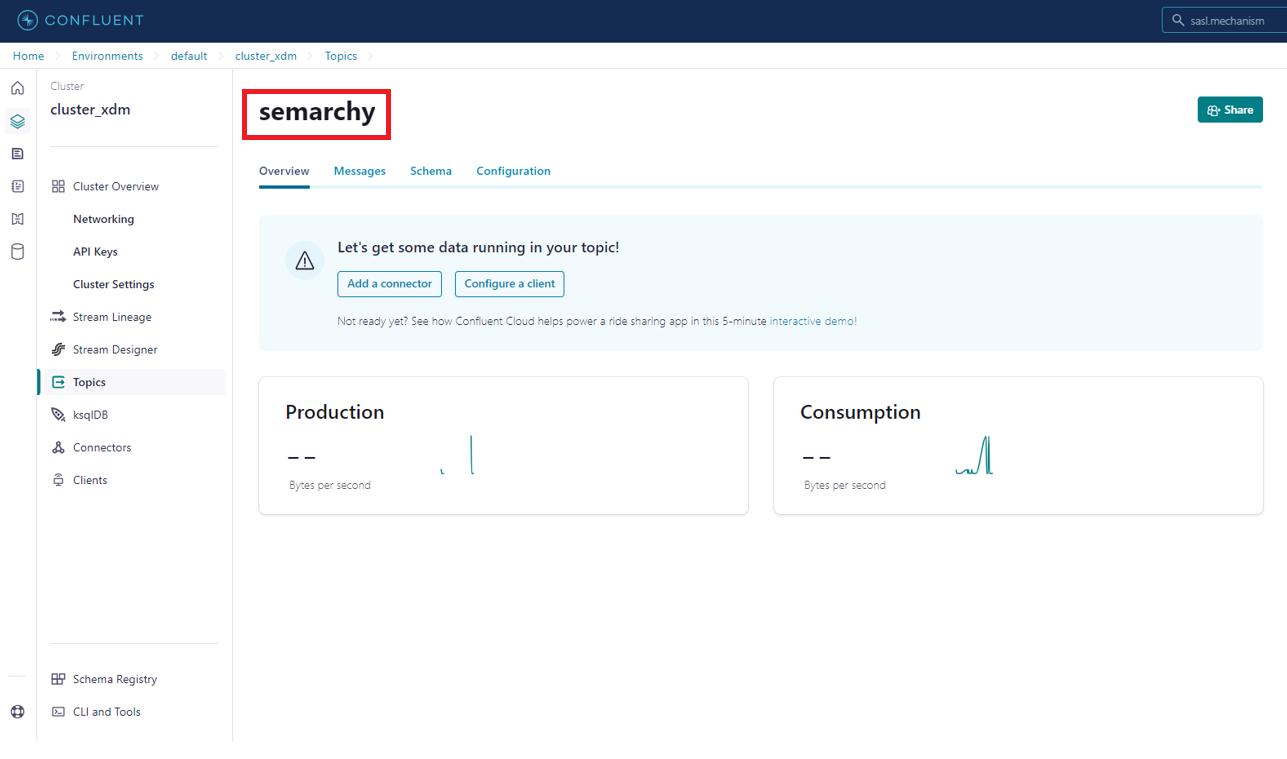

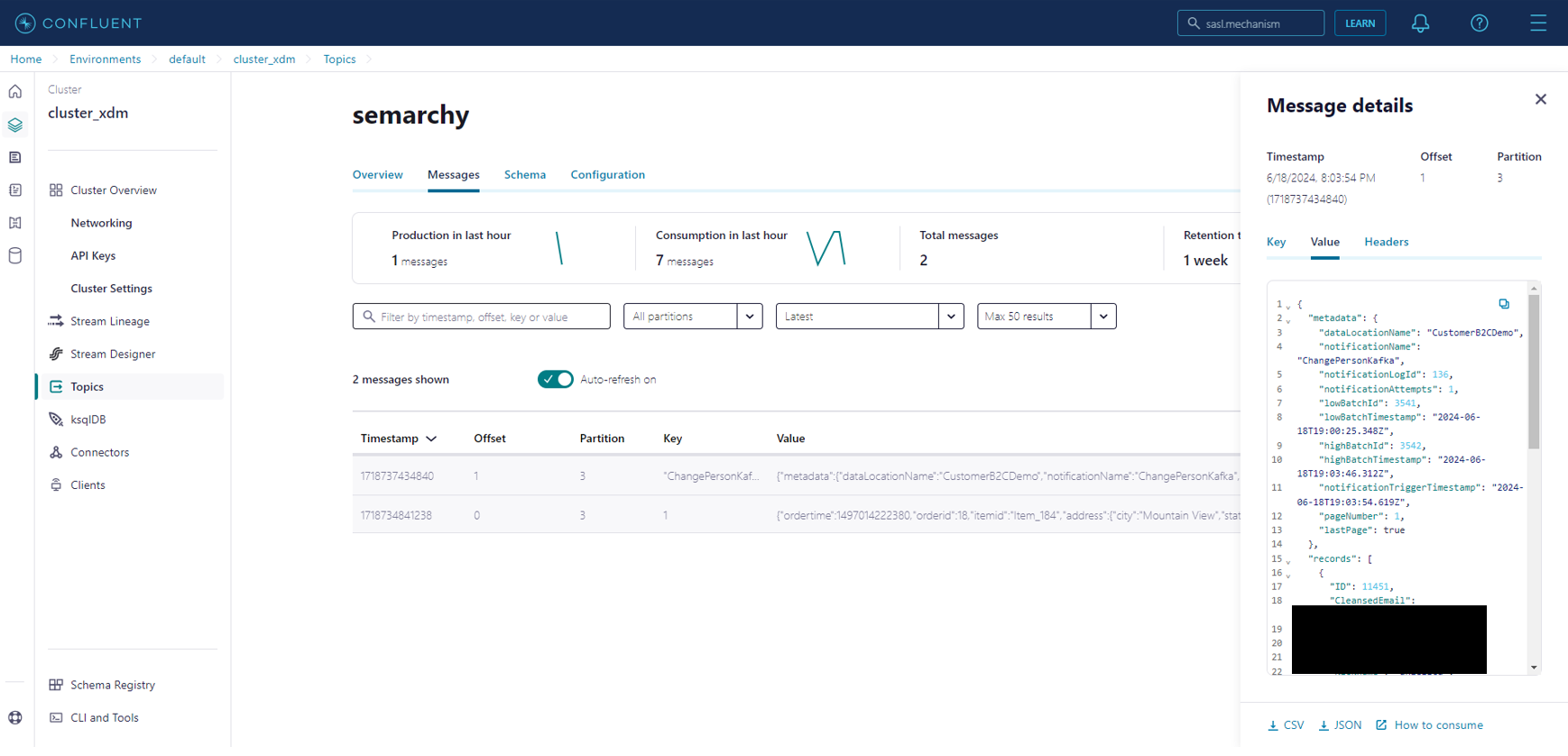

4. You should see that in the Topic
