Need

In some integration scenarios, REST API consumers need access to a binary attribute (such as an image, document, or file) stored in Semarchy.

However, sending the full binary content directly in the API response may:

• Increase payload size significantly.
• Impact performance.
• Be unnecessary when the consumer only needs access to the file.
• Create constraints for embedding content in external applications.

The requirement is therefore to allow API consumers to access binary content without including the binary itself in the REST response.

Summarized Solution

Instead of returning the binary content, you can return a direct URL pointing to the binary resource.

This is achieved by:

• Creating a Hyperlink form field based on the binary attribute.
• Retrieving the generated binary URL.
• Reusing that URL structure inside a Named Query (SemQL expression).
• Returning the generated link in the REST API response.

The REST consumer then uses this link to access the binary content directly, without the binary being embedded in the API payload.

Detailed Solution

1. Generate the Binary Resource URL

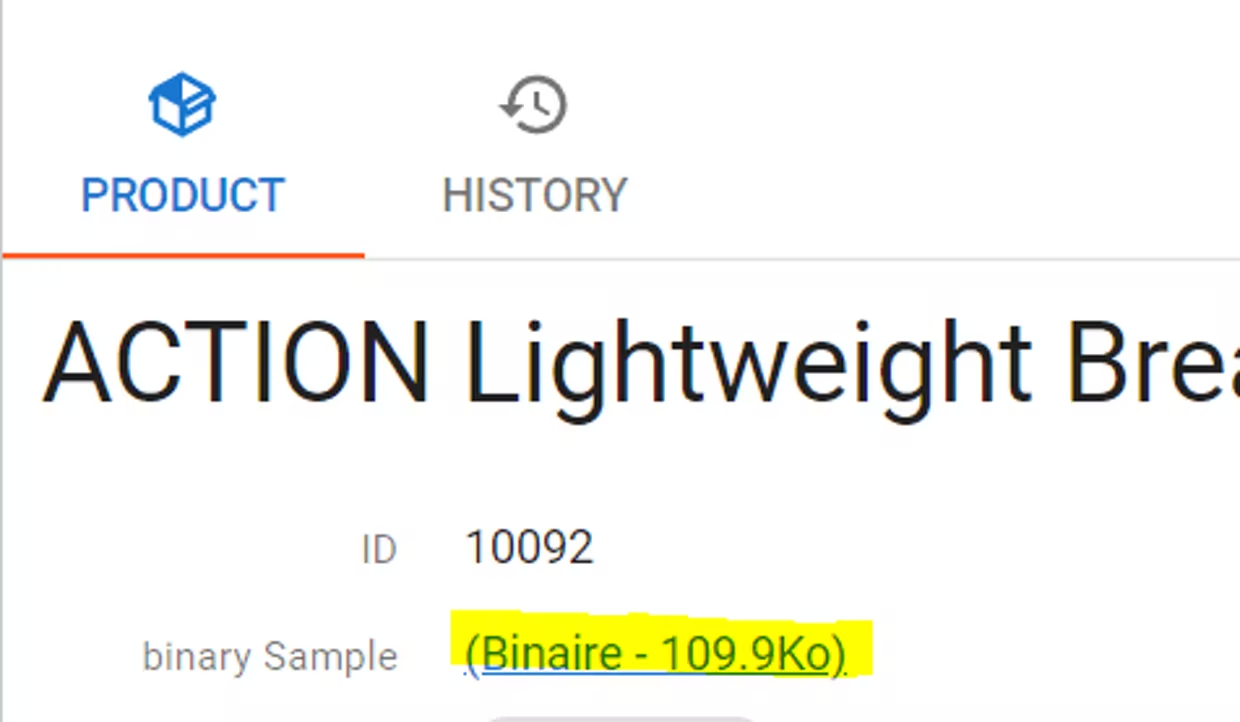

• Add your Binary attribute to a Form.
• Configure it as a Component Type: Hyperlink.
• Browse a record and click the hyperlink.

When clicking the link, you will see that it points to a URL structured like this:

:V_SERVER_BASE_URL || '/binaryResource?dlocName=' || :V_DATALOCATION
|| '&entityName=Product'
|| '&viewType=GD'
|| '&selectExpression=binarySample'
|| '&recordId=%7B%22ID%22%3A' || ID || '%7D'
|| '&hash=3303'

This URL is the direct access path to the binary content.

2. Reuse the URL in a Named Query

You can reuse this URL pattern inside a Named Query using a SemQL expression.



The Named Query will dynamically generate the binary link for each record and include it in the REST response body.

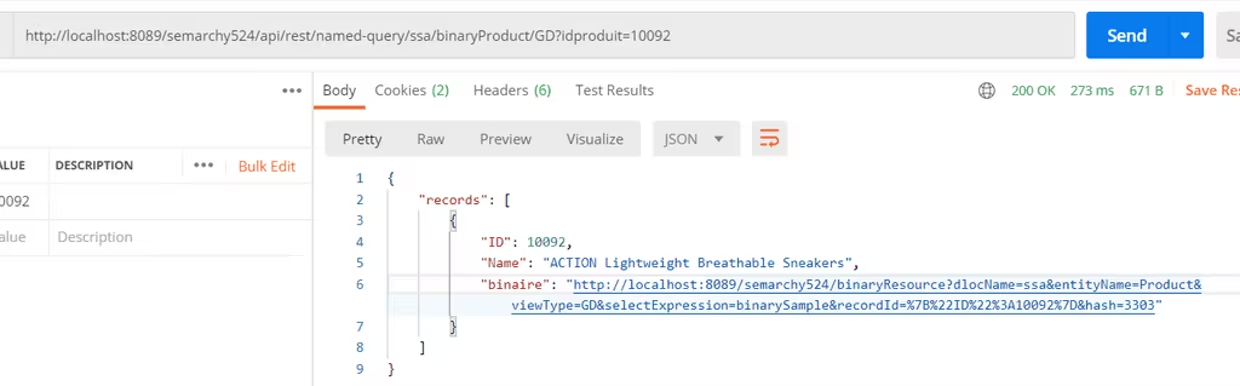

Instead of returning the binary content itself, the API response will contain something like:

{
  "id": 1001,
  "name": "Product A",
  "binaryLink": "https://server/binaryResource?dlocName=..."
}

3. Use the link in external applications

The generated link can be:

• Embedded in web or mobile applications
• Used in <img> tags
• Opened in a browser
• Consumed by third-party systems

The important point is: the binary content is not sent through the REST API response.

Only the hyperlink is shared.

The actual binary is retrieved only when the link is called.

This approach optimizes performance and keeps API payloads lightweight while still enabling full access to the binary content.
